PCDSP6TEL DSP Board
Relcom's PCDSP6TEL DSP Board is a special DSP board for very complex signal porcessing application with versatile, 100% user defined resource allocation capability. The board is a telecommunication optimized platform for PCM signal processing applications. Complete 16-channel E1/T1/J1 receive/transmit processing capability, one-channel DS3/E3 receive/transmit processing capability.

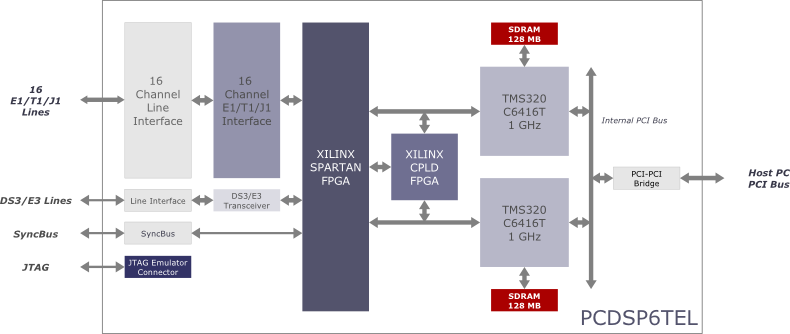

Block Diagram
Features
Telecommunication optimized platform for PCM signal processing applications
100% user defined resource allocation capability to fit with the application need
Ideal tool for high-speed (FPGA), and lower speed but complex (DSP) signal processing applications
Complete 16-channel E1/T1/J1 receive/transmit processing capability
Complete one-channel DS3/E3 receive/transmit processing capability
Two highest speed DSPs of the world
SPARTAN3 FPGA, which is freely programmable for the user
DSP part
Two TMS320C6416T Digital Signal Processors highest speed DSP of the world - 1GHz
128 Mbyte 64 bit wide SDRAM for both processors
Local PCI bus for internal data transfer
Very fast two port memory between DSPs
All DSP resources can be accessed from the PCI bus
Configurable interrupt system allowing high level flexibility
FPGA part
1.5 Million gate SPARTAN3 FPGA fully user programmable from host PC, with SelectMap real-time debug feature
Two-port memory core is implemented
E1/T1/J1 input/output section
16 independent transceivers with E1/T1/J1 line interface and framer units
E1/T1/J1 signals can be processed in the DSPs
Signal processing capability of E1/T1/J1 signals in the FPGA
DS3/E3 input/output part
One channel transceivers with DS3/E3 line interface and framer units
DS3/E3 signals can be processed in the DSPs
Signal processing capability of DS3/E3 signals in the FPGA
